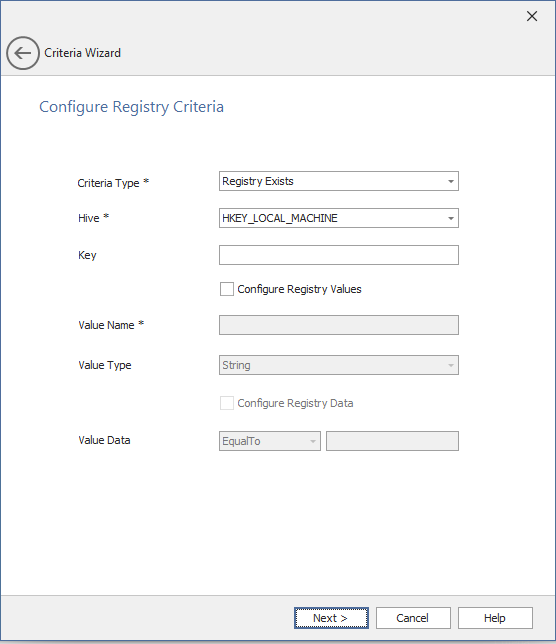

Configure Registry Criteria Panel
On the Configure Registry Criteria panel, you specify the registry criteria.
The Configure Registry Criteria panel includes the following properties:
| Property | Description |
|---|---|
| Criteria Type | Select one of the following Criteria Type: • Registry exists • Registry does not exist |
| Hive | Select the registry hive of the registry key or value that you are using in this criteria. Select the required Hive from the following list: • HKEY_CLASSES_ROOT • HKEY_CURRENT_CONFIG • HKEY_CURRENT_USER • HKEY_LOCAL_MACHINE • HKEY_USERS By default HKEY\_LOCAL\_MACHINE will be selected. |
| Key | Enter the registry key that you are using in this criteria. |
| Configure Registry Values | Select this check box to configure registry values. The following properties will be enabled only when you select this check box: • Value Name • Value Type • Configure Registry Data By default, this check box will be unselected. |
| Value Name | Enter the registry value name that you are using in this criteria. This field is enabled only when the Configure Registry Values check box is selected. |
| Value Type | Select the one of the following value type: • String • DWORD (32 bit) • DWORD (64 bit) • Multi-String • Expandable-String • Version By default, the String type will be selected. This field is enabled only when the Configure Registry Values check box is selected. |
| Configure Registry Data | Select this check box to configure the registered data value. By default, this check box will be unselected. |
| Value Data | Select one of the following registered data value: • EqualTo • NotEqualTo • GreaterThanOrEqualTo • GreaterThan • LessThanOrEqualTo • LessThan In the Value field, enter a value for the registry value to define the criteria. This field is enabled only when the Configure Registry Data check box is selected. If you select Value type as a Version, then enter the version value of the criteria in the below format: 1.0.0.0 |
